An AutoLayout DSL that intuitive syntax and viewable hierarchy

An AutoLayout DSL that intuitive syntax and viewable hierarchy

UILayoutBuilder

Using UILayoutBuilder, make it easy to see constraints with view hierarchy.

In addition, you can find a constraint method easily by auto-completion with first one or two charactors.

UILayoutBuilder

You can replace:

view.addSubview(subview)
subview.translatesAutoresizingMaskIntoConstraints = false
NSLayoutConstraint.activate([
    subview.topAnchor.constraint(equalTo: view.safeAreaLayoutGuide.topAnchor, constant: 10),
    subview.leadingAnchor.constraint(equalTo: view.leadingAnchor, constant: 10),
    subview.bottomAnchor.constraint(equalTo: view.safeAreaLayoutGuide.bottomAnchor, constant: -10),
    subview.trailingAnchor.constraint(equalTo: view.trailingAnchor, constant: -10),
])

to

view.ulb.add.subview(subview) { view, subview in
    subview.top.equalTo.top(view.safeAreaLayoutGuide).constant(10)
    subview.leading.equalTo.leading(view).constant(10)
    subview.bottom.equalTo.bottom(view.safeAreaLayoutGuide).constant(-10)
    subview.trailing.equalTo.trailing(view).constant(-10)
}

Installation

Carthage

If you’re using Carthage, simply add
UILayoutBuilder to your Cartfile:

github "marty-suzuki/UILayoutBuilder"

CocoaPods

UILayoutBuilder is available through CocoaPods. To install
it, simply add the following line to your Podfile:

pod "UILayoutBuilder"

Swift Package Manager

Simply add the following line to your Package.swift:

.package(url: "https://github.com/marty-suzuki/UILayoutBuilder.git", from: "version")

Usage

Start with ulb.add.subview, receives proxy of superview and subview. Call proxy.add.subview, receives proxy of subviews only.

You can constrain for AutoLayout using them.

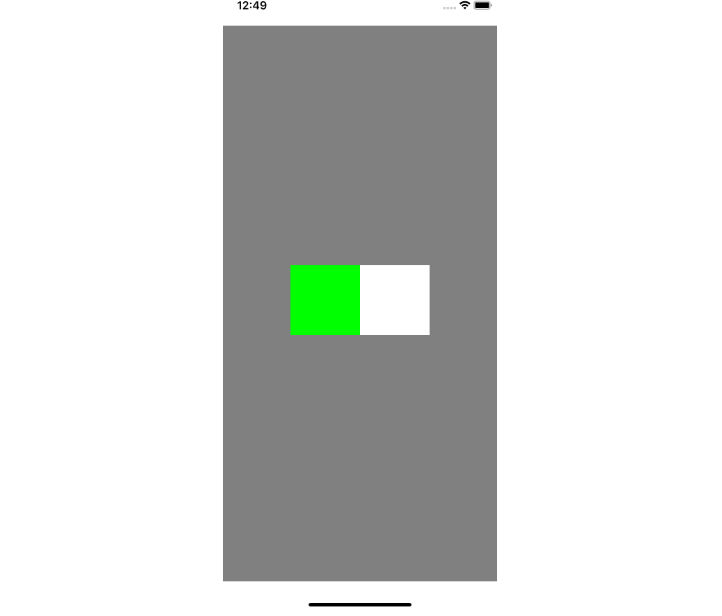

view.ulb.add.subview(grayview) { view, grayview in
    grayview.edges.equalTo.edges(view.safeAreaLayoutGuide).constant(10)

    grayview.add.subview(greenview, whiteview) { greenview, whiteview in
        greenview.size.equalTo.constant(width: 100, height: 100)
        greenview.center.equalTo.center(view).constant(x: -50, y: 0)
        whiteview.leading.equalTo.trailing(greenview)
        whiteview.top.equalTo.top(greenview)
        whiteview.size.equalTo.size(greenview)
    }
}

For every view added by ulb.add.subview or proxy.add.subview will automatically set its translatesAutoresizingMaskIntoConstraints property to false.

Axis

subview.top.equalTo.top(view).constant(10)
// subview.topAnchor.constraint(equalTo: view.topAnchor, constant: 10)

subview.top.greaterThanOrEqualTo.top(view).constant(10)
// subview.topAnchor.constraint(greaterThanOrEqualTo: view.topAnchor, constant: 10)

subview.top.lessThanOrEqualTo.top(view).constant(10)
// subview.topAnchor.constraint(lessThanOrEqualTo: view.topAnchor, constant: 10)

subview.center.equalTo.center(view).constant(x: 100, y: 100)
// subview.centerXAnchor.constraint(equalTo: view.centerXAnchor, constant: 50)
// subview.centerYAnchor.constraint(equalTo: view.centerYAnchor, constant: -50)

subview.horizontal.equalTo.horizontal(view).constant(leading: 10, trailing: -10)
// subview.leadingAnchor.constraint(equalTo: view.leadingAnchor, constant: 10)
// subview.trailingAnchor.constraint(equalTo: view.trailingAnchor, constant: -10)

subview.vertical.equalTo.vertical(view).constant(top: 10, bottom: -10)
// subview.topAnchor.constraint(equalTo: view.topAnchor, constant: 10)
// subview.bottomAnchor.constraint(equalTo: view.bottomAnchor, constant: -10)

subview.edges.equalTo.edges(view).constant(10)
// or
subview.edges.equalTo.edges(view).constant(top: 10, leading: 10, bottom: -10, trailing: -10)
// subview.topAnchor.constraint(equalTo: view.topAnchor, constant: 10)
// subview.leadingAnchor.constraint(equalTo: view.leadingAnchor, constant: 10)
// subview.bottomAnchor.constraint(equalTo: view.bottomAnchor, constant: -10)
// subview.trailingAnchor.constraint(equalTo: view.trailingAnchor, constant: -10)

Dimension

subview.height.equalTo.height(view)
// subview.heightAnchor.constraint(equalTo: view.heightAnchor)

subview.width.equalTo.width(view).multiplier(0.5).constant(100)
// subview.widthAnchor.constraint(equalTo: view.widthAnchor, multiplier: 0.5, constant: 100)

subview.height.equalTo.constant(100)
// subview.heightAnchor.constraint(equalToConstant: 100)

subview.size.equalTo.size(view)
// subview.heightAnchor.constraint(equalTo: view.heightAnchor)
// subview.widthAnchor.constraint(equalTo: view.widthAnchor)

subview.size.equalTo.constant(width: 100, height: 100)
// subview.heightAnchor.constraint(equalToConstant: 100)
// subview.widthAnchor.constraint(equalToConstant: 100)

Priority

subview.width.equalTo.width(view).priority(.required)
// subview.widthAnchor.constraint(equalTo: view.widthAnchor).priority = .required

Constraints

let constraint: NSLayoutConstraint = subview.width.equalTo.width(view).asConstraint()
let constraints = subview.edges.equalTo.edges(view).asConstraints()
let top: NSLayoutConstraint = constraints.top
let leading: NSLayoutConstraint = constraints.leading
let bottom: NSLayoutConstraint = constraints.bottom
let trailing: NSLayoutConstraint = constraints.trailing
let constraints = subview.size.equalTo.size(view).asConstraints()
let width: NSLayoutConstraint = constraints.width
let height: NSLayoutConstraint = constraints.height
let constraints = subview.center.equalTo.center(view).asConstraints()
let x: NSLayoutConstraint = constraints.x
let y: NSLayoutConstraint = constraints.y
let constraints = subview.horizontal.equalTo.horizontal(view).asConstraints()
let leading: NSLayoutConstraint = constraints.leading
let trailing: NSLayoutConstraint = constraints.trailing
let constraints = subview.vertical.equalTo.vertical(view).asConstraints()
let top: NSLayoutConstraint = constraints.top
let bottom: NSLayoutConstraint = constraints.bottom

Requirements

  • Xcode 11.3.1 or greater
  • iOS 10.0 or greater
  • tvOS 10.0 or greater
  • macOS 10.11 or greater

Author

Taiki Suzuki, [email protected]
