fluxus

Fluxus is an implementation of the Flux pattern for SwiftUI that replaces MVC, MVVM, Viper, etc.

  • Organize all your model data into a store and easily access in your views.
  • Use mutations to modify your app's state.
  • Use actions to perform asynchronous operations.
  • Keep your models and views as simple as possible.

Requirements

Xcode 11 beta on MacOS 10.14 or 10.15

Installation

In Xcode, choose File -> Swift Packages -> Add Package Dependency and enter this repo's URL.

Concepts

  • State is the root source of truth for your app
  • Mutations describe a synchronous change in state
  • Committers apply mutations to the state
  • Actions describe an asynchronous operation
  • Dispatchers execute asynchronous actions and commit mutations when complete

Obligatory Flux Diagram

When should I use it?

Fluxus helps us deal with shared state management at the cost of more concepts and boilerplate. If you're not building a complex app, and jump right into Fluxus, it may feel verbose and unnecessary. If your app is simple, you probably don't need it. But once your app grows to a certain complexity, you'll start looking for ways to organize shared state, and Fluxus is here to help with that. To quote Dan Abramov, author of Redux:

Flux libraries are like glasses: you’ll know when you need them.

Using Fluxus doesn't mean you should put all your state in Fluxus. If a piece of state strictly belongs to a single View, it might be fine to just use local @State. Check out the landmarks example to see how local @State and Fluxus state can work together.

Example apps

Articles

Usage

Create state

State is the root source of truth for the model data in your app. We create one state module, for a counter, and add it to the root state struct.

import Fluxus

struct CounterState: FluxState {
  var count = 0

  var myBoolValue = false

  var countIsEven: Bool {
    get {
      return count % 2 == 0
    }
  }

  func countIsDivisibleBy(_ by: Int) -> Bool {
    return count % by == 0
  }
}

struct RootState {
  var counter = CounterState()
}

Create mutations/committers

Mutations describe a change in state. Committers receive mutations and modify the state.

import Fluxus

enum CounterMutation: Mutation {
  case Increment
  case AddAmount(Int)
  case SetMyBool(Bool)
}

struct CounterCommitter: Committer {
  func commit(state: CounterState, mutation: CounterMutation) -> CounterState {
    var state = state

    switch mutation {
    case .Increment:
      state.count += 1
    case .AddAmount(let amount):
      state.count += amount
    case .SetMyBool(let value):
      state.myBoolValue = value
    }

    return state
  }
}

Create actions/dispatchers

Actions describe an asynchronous operation. Dispatchers receive actions, then commit mutations when the operation is complete.

import Foundation
import Fluxus

enum CounterAction: Action {
  case IncrementRandom
  case IncrementRandomWithRange(Int)
}

struct CounterDispatcher: Dispatcher {
  var commit: (Mutation) -> Void

  func dispatch(action: CounterAction) {
    switch action {
    case .IncrementRandom:
      IncrementRandom()
    case .IncrementRandomWithRange(let range):
      IncrementRandom(range: range)
    }
  }

  func IncrementRandom(range: Int = 100) {
    // Simulate API call that takes 150ms to complete
    DispatchQueue.main.asyncAfter(deadline: .now() + .milliseconds(150), execute: {
      let exampleResultFromAsyncOperation = Int.random(in: 1..<range)
      self.commit(CounterMutation.AddAmount(exampleResultFromAsyncOperation))
    })
  }
}

Create store

The store holds the current state. It also provides commit and dispatch methods, which route mutations and actions to the correct modules.

import SwiftUI
import Combine
import Fluxus

let rootStore = RootStore()

final class RootStore: BindableObject {
  var didChange = PassthroughSubject<RootStore, Never>()

  var state = RootState() {
    didSet {
      didChange.send(self)
    }
  }

  func commit(_ mutation: Mutation) {
    switch mutation {
    case is CounterMutation:
      state.counter = CounterCommitter().commit(state: self.state.counter, mutation: mutation as! CounterMutation)
    default:
      print("Unknown mutation type!")
    }
  }

  func dispatch(_ action: Action) {
    switch action {
    case is CounterAction:
      CounterDispatcher(commit: self.commit).dispatch(action: action as! CounterAction)
    default:
      print("Unknown action type!")
    }
  }
}

Add store to environment

We now provide the store to our views inside SceneDelegate.swift.

window.rootViewController = UIHostingController(rootView: ContentView().environmentObject(rootStore))

Use in views

ContentView.swift:

import SwiftUI

struct ContentView : View {
  @EnvironmentObject var store: RootStore

  var body: some View {
    NavigationView {
      Form {
        // Read the count from the store, and use a getter function to decide color
        Text("Count: \(store.state.counter.count)")
          .color(store.state.counter.countIsDivisibleBy(3) ? .orange : .green)

        Section {
          // Commit a mutation without a param
          Button(action: { self.store.commit(CounterMutation.Increment) }) {
            Text("Increment")
          }

          // Commit a mutation with a param
          Button(action: { self.store.commit(CounterMutation.AddAmount(5)) }) {
            Text("Increment by amount (5)")
          }

          // Dispatch an action without a param
          Button(action: { self.store.dispatch(CounterAction.IncrementRandom) }) {
            Text("Increment random")
          }

          // Dispatch an action with a param
          Button(action: { self.store.dispatch(CounterAction.IncrementRandomWithRange(20)) }) {
            Text("Increment random with range (20)")
          }
        }

        // Use with bindings
        Toggle(isOn: myToggleBinding) {
          Text("My boolean is: \(myToggleBinding.value ? "true" : "false")")
        }
      }.navigationBarTitle(Text("Fluxus Example"))
    }
  }

  // Use computed properties to get/set state via a binding
  var myToggleBinding = Binding<Bool> (
    getValue: {
      rootStore.state.counter.myBoolValue
  },
    setValue: { value in
      rootStore.commit(CounterMutation.SetMyBool(value))
  })
}

#if DEBUG
struct ContentView_Previews : PreviewProvider {
  static var previews: some View {
    return ContentView().environmentObject(rootStore)
  }
}
#endif

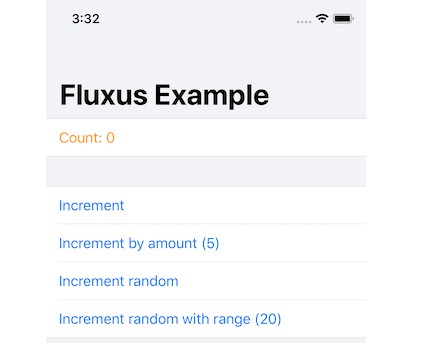

Simulator Screen Shot - iPhone Xs - 2019-06-17 at 15 32 11

? You should now have an app that demonstrates the basics of the flux pattern with Fluxus & SwiftUI. If you're having trouble getting this running, download the example app, or file a Github issue and we'll try to help.

Where to go from here

Check out the landmarks example app to see fluxus used in a more complex app environment.

Troubleshooting

Swift/SourceKit are using 100% CPU!

This is a bug in Xcode 11 beta, it usually means something is wrong with your @EnvironmentObject, make sure you are passing .environmentObject() to your view correctly.

If you are presenting a new view (e.g. a modal) you will have to pass .environmentObject(store) to it, just like your root view controller.

Feedback

Please file an issue if you spot a bug or think of a better way to do something.

Follow me on twitter @jsusek for random thoughts on SwiftUI.
