Navigation seems to be a strong point for people making AR apps. So here's a class to easily create a path in AR along a set of centre points. This class can also be used to draw out a racetrack, road for an animated character to follow, or even draw a pentagram on the floor!

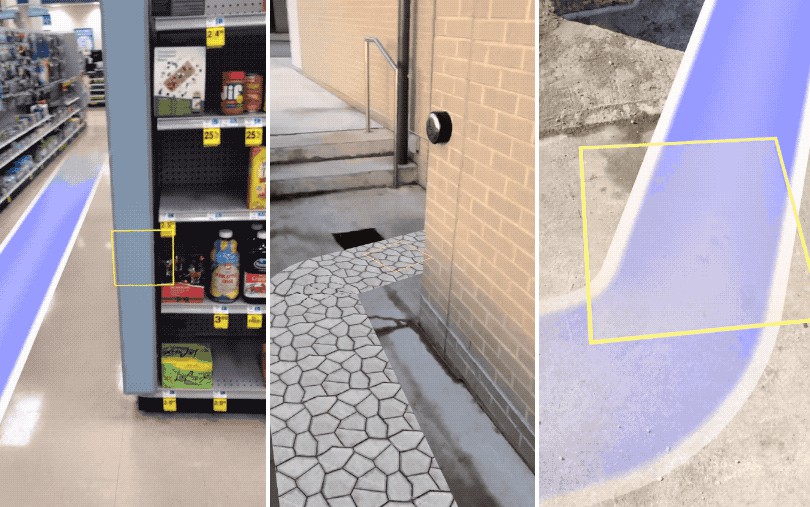

Check out the full tutorial on Medium on how I made the examples in the below gifs using this Pod and about 30 lines of non boilerplate code.

Please feel free to use and contribute this library however you like.
I only ask that you let me know when you're doing so, so I can see some cool uses of it!

Example

It's as easy as this to make a node with this path as a geometry:

let pathNode = SCNPathNode(path: [
	SCNVector3(0,-1,0),
	SCNVector3(0,-1,-1),
	SCNVector3(1,-1,-1)
])

Alternatively, you can grab the geometry directly:

let pathGeometry = SCNGeometry.path(path: [
	SCNVector3(0,-1,0),
	SCNVector3(0,-1,-1),
	SCNVector3(1,-1,-1)
])

The y value is set to -1 just as an example that assumes the origin of your scene graph is 1m above the ground. Use plane detection to actually hit the ground correctly.

Other parameters that can be passed into both the SCNPathNode class and the SCNGeometry.path functions:

name description default example
path Array of SCNVector3 points to make up the path no default [SCNVector3(0,-1,0), SCNVector3(0,-1,-1), SCNVector3(1,-1,-1)]
width width of the path in meters 0.5 0.1
curvePoints number of points to make up the curved look when the path is turning to a new direction. 8 16
materials materials to be applied to the geometry. a blue SCNMaterial [SCNMaterial()]
curveDistance distance from the centre of the curve as a multiple of half the width to set the corner radius. Minimum value is 1. 1.5 2
